6  Multicollinearity

Learning objectives

1. Be able to describe and identify different forms of multicollinearity.
2. Understand the effects of multicollinearity on parameter estimates and their standard errors.
3. Be able to evaluate predictors for multicollinearity using variance inflation factors.
4. Understand some strategies for dealing with multicollinearity.

6.1 R Packages

We begin by loading the dplyr package:

library(dplyr) # for data wrangling
library(modelsummary) # for summary tables
options(modelsummary_factory_latex = "kableExtra")
options(modelsummary_factory_html = "kableExtra")

In addition, we will use data and functions from the following packages:

• openintro for the mammals data set
• car for the vif function used to calculate variance inflation factors
• GGally for creating a scatterplot matrix

6.2 Multicollinearity

As we noted in Section 3.14.1, predictor variables will almost always be correlated in observational studies. When these correlations are strong, it can be difficult to estimate parameters in a multiple regression model, leading to coefficients with large standard errors. This should, perhaps, not be too surprising given that we have emphasized the interpretation of regression coefficients in a multiple regression model as quantifying the expected change in $Y$ as we change a focal predictor by 1 unit while holding all other predictors constant. When two variables are highly correlated, changes in one variable tend to be associated with changes in the other. Therefore, our data do not provide much information about how $Y$ changes in response to changes in only one of the predictors, and the inflated standard errors associated with regression coefficients for collinear variables accurately reflect these uncertainties (Morrissey and Ruxton 2018).

If we are primarily interested in prediction, collinearity may be of little importance. We can use a model with collinear variables to obtain predictions, and these predictions can be unbiased and precise as long as our data are representative of the population for which we aim to obtain predictions (Michael H. Kutner et al. 2005, 5:283; Dormann et al. 2013). On the other hand, collinearity will make inference challenging since it will be difficult to distinguish the unique effects of collinear variables. Thus, we will need tools to identify collinear variables and to make inferences regarding their effects.

Ecologists commonly compute pairwise correlations between all predictor variables and drop one member of any pair when the absolute value of the associated correlation coefficient, $|r|$ is greater than 0.7 (Dormann et al. 2013). Dropping a predictor from a highly correlated pair will often result in more precise estimates but necessarily leads to some loss of information. Further, although pairwise correlations may identify pairs of variables that are collinear, ecologists also need to be able to diagnose situations in which the information in a predictor variable is largely redundant with the information contained in a suite of predictors (i.e., multicollinearity). Multicollinearity implies that one of the explanatory variables can be predicted by the others.

There are several types of collinearity/multicollinearity that can arise when analyzing data. In some cases, we may have multiple measurements that reflect some latent (i.e. unobserved) quantity; Dormann et al. (2013) refers to this as intrinsic collinearity. For example, biologists may quantify the size of their study animals using multiple measurements (e.g., length from head to tail, neck circumference, etc). It would not be surprising to find that pairwise correlations between these different body measurements are large because they all relate to one latent quantity, which is overall body size. In other cases, quantitative variables may be constructed by aggregating categorical variables (e.g., percent cover associated with different land-use categories in different pixels within a Geographical Information System [GIS] layer). These compositional variables must sum to 1, and thus, the last category is completely determined by the others. This is an extreme example of multicollinearity; statistical software will be unable to estimate separate coefficients for each compositional variable along with an overall intercept. For a discussion of collinearity in the context of compositional variables and potential solutions, see Valle, Mintz, and Brack (2024).

Collinearity can also occur structurally, e.g., when fitting models with polynomial terms or with predictors that have very different scales. For example, the correlation between $x$ and $x^2$ will often be large (see below).

x <- seq(0:100); x2 = x*x
cor(x,x^2)

[1] 0.9688484

This type of collinearity can often be fixed by using various transformations of the explanatory variables e.g., using orthogonal polynomials as discussed in 4.11. Lastly, variables may be correlated due to other reasons that are harder to identify on their own - e.g., perhaps several predictors covary spatially leading to mild to severe multicollinearity. As an example, temperature, precipitation, and elevation may all covary along an elevation gradient. Lastly, collinearity can also happen by chance in small data sets; Dormann et al. (2013) calls this incidental collinearity and suggests it is best addressed through proper sampling or experimental design (e.g., to ensure that predictor variables do not substantially covary).

Some of the symptoms of multicollinearity include:

• regression coefficients may be statistically significant in simple linear regression models but not in regression models with multiple predictors as they compete to explain the same variability in $Y$.
• parameter estimates may have large standard errors, representing large uncertainty, despite large sample sizes.
• the p-values associated with t-tests for the individual coefficients in the regression model may be large ($>0.05$), but a multiple degree-of-freedom F-test of the null hypothesis that all coefficients are 0 may have a p-value $<0.05$. In essence, we can conclude that the suite of predictor variables explains significant variation in $Y$, but we are unable to identify the independent contribution of each of the predictors.
• lack of convergence when using numerical optimization routines to estimate parameters in complex statistical models.
• parameter estimates may be unstable; small changes in the data or model structure can change parameter estimates considerably (sometimes referred to as the “bouncing beta problem”).
• parameter estimates may change in magnitude (and even sign) depending on what other variables are included in the model (e.g., Table 6.1). As we will see in Chapter 7, we can use causal diagrams to try to understand and leverage these types of behaviors when estimating direct and indirect effects of our explanatory variables.

6.3 Motivating example: what factors predict how long mammals sleep?

To demonstrate some of these issues, let’s briefly explore a popular data set from the openintro package (Çetinkaya-Rundel et al. 2021) containing measurements of the average amount of time different mammals sleep per 24 hour period (Allison and Cicchetti 1976; Savage and West 2007).

Figure 6.1: Average daily sleep totals (hours) for several different mammal species. Figure created using images available on PyloPic. Elephant by T. Michael Keesey - CC By 3.0.

Sleep is characterized by either slow wave (non-dreaming) or rapid eye movement (dreaming), with wide variability in the amount of both types of sleep among mammals. In particular, Roe Deer (Capreolus capreolus) sleep < 3 hours/day whereas the Little Brown Bat (Myotis lucifugus) sleeps close to 20 hours per day.

The data set has many possible variables we could try to use to predict the amount of time different mammals sleep, including:

• Lifespan (years)
• Gestation (days)
• Brain weight (g)
• Body weight (kg)
• Predation Index (1-5; 1 = least likely to be preyed upon)
• Exposure Index [1-5: 1 = least exposed (e.g., animal sleeps in a den)]
• Danger Index (1:5, combines exposure and predation; 1= least danger from other animals)

It turns out that all of these variables are negatively correlated with sleep (see the correlations in the first row of Figure 6.2) - no wonder it is so difficult to get a good night’s rest!

library(openintro)
data(mammals, package="openintro")
mammals <- mammals %>% dplyr::select(total_sleep, life_span, gestation,
                          brain_wt, body_wt, predation,
                          exposure, danger) %>%
  filter(complete.cases(.))
GGally::ggpairs(mammals)

Figure 6.2: Scatterplot matrix of the predictors in the mammals data set.

We also see that our predictor variables are highly correlated with each other (Figure 6.2). Lastly, we see that the distribution of brain_wt and body_wt are severely right skewed with a few large outliers. To reduce the impact of these outliers, we will consider log-transformed predictors, log(brain_wt) and log(body_wt) when including them in regression models¹.

To see how collinearity can impact estimated regression coefficients and statistical hypothesis tests involving these coefficients, let’s consider the following two models:

Model 1: Sleep = ${\beta }_0+{\beta }_1$life_span

Model 2: Sleep = ${\beta }_0+{\beta }_1$life_span $+{\beta }_2$danger $+{\beta }_3$log(brain_wt)

model2<-lm(total_sleep ~ life_span + danger + log(brain_wt), data=mammals)
modelsummary(list("Model 1" = model1, "Model 2" = model2), gof_omit = ".*",
             estimate = "{estimate} ({p.value})",
             statistic = NULL)

Table 6.1: Estimates (p-values) for lifespan in a model with and without other explanatory variables

	Model 1	Model 2
(Intercept)	12.312 (<0.001)	17.837 (<0.001)
life_span	-0.097 (0.004)	-0.008 (0.811)
danger		-1.728 (<0.001)
log(brain_wt)		-0.879 (<0.001)

In the first model, life_span is statistically significant and has a coefficient of -0.097 (Table 6.1). However, life_span is no longer statistically significant once we include danger and log(brain_wt), and its coefficient is also an order of magnitude smaller (${\hat{\beta }}_{log.BrainWt}=-0.008$). What happened?

Because life_span and log(brain_wt) are positively correlated, they will “compete” to explain the same variability in sleep measurements.

mosaic::cor(life_span ~ log(brain_wt), data = mammals, use = "complete.obs")

[1] 0.7267191

If we try to fit a model with all of the explanatory variables, we find that only danger and predation have p-values < 0.05 (Table 6.2). Further, the coefficient for predation is positive despite our intuition that high predation pressure should be negatively correlated with sleep. And, indeed, the coefficient for predation is negative if it is the only explanatory variable in the model. In Section 6.5 and Chapter 7, we will use causal diagrams to explore potential reasons why the magnitude and direction of a regression coefficient may change after adding or excluding a variable.

model3 <- lm(total_sleep ~ life_span + gestation + log(brain_wt) +
               log(body_wt) + predation + exposure + danger, data=mammals)
model4 <- lm(total_sleep ~ predation, data=mammals)
modelsummary(list("Model 3" = model3, "Model 4" = model4), gof_omit = ".*",
             estimate = "{estimate} ({p.value})",
             statistic = NULL)

Table 6.2: Estimates (p-values) for a model containing all predictors and one that only contains predation.

	Model 3	Model 4
(Intercept)	17.149 (<0.001)	14.465 (<0.001)
life_span	0.015 (0.647)
gestation	-0.008 (0.094)
log(brain_wt)	-0.841 (0.189)
log(body_wt)	0.129 (0.781)
predation	1.950 (0.046)	-1.448 (<0.001)
exposure	0.828 (0.147)
danger	-4.193 (<0.001)

6.4 Variance inflation factors (VIF)

Variance inflation factors (VIFs) were developed to quantify collinearity in ordinary least squares regression models. They measure the degree to which the variance (i.e., SE${}^2$) of a regression parameter is inflated due to collinearity and can be calculated using:

$$\begin{array}{}\text{(6.1)}& VIF({\hat{\beta }}_j)=\frac{1}{1-R_{X_j|X_1,...,X_{j-1},X_{j+1},X_p}^2}\end{array}$$

where $R_{X_j|X_1,...,X_{j-1},X_{j+1},X_p}^2$ is the multiple $R^2$ from a regression that predicts $X_j$ using all other predictors in the model (i.e., lm($X_j\sim X_1+\dots +X_{j-1}+X_{j+1}+X_p$)). Inspecting Equation 6.1, we see that as this $R^2$ approaches 1, the VIF will approach $\mathrm{\infty }$. The square root of the VIF can be interpreted as providing an indication of how much larger the standard error associated with $X_j$ is compared to the case where $X_j$ is uncorrelated with all other predictors (i.e., if $R_{X_j|X_1,...,X_{j-1},X_{j+1},X_p}^2=0$). There are several rules of thumb in the published literature that suggest VIFs $\ge$ 4 or 5 warrant further inspection and VIFs $\ge$ 10 are particularly problematic (Michael H. Kutner, Nachtsheim, and Neter 2004). In an influential paper published in Ecology, Graham (2003) highlighted that a VIF around 2 was high enough to impact the choice of predictor variables when applying common model selection algorithms (see also Zuur, Ieno, and Elphick 2010). In the sections that follow, we will briefly explore the impact of collinearity using a simulation study and then consider the data and examples from Graham (2003) .

Let’s have a look at the VIFs for the sleep data if we were to include all of the predictors. We will use the vif function in the car package (Fox and Weisberg 2019) to calculate the VIFs:

car::vif(model3)

    life_span     gestation log(brain_wt)  log(body_wt)     predation
     2.507122      2.971837     16.568907     13.903451     12.978738
     exposure        danger
     5.121031     16.732626

We can also use the check_model function in the performance package to create a nice visualization of the VIFS (Figure 6.3). We see that several of the VIFs are large and greater than 10, suggesting that several of our predictor variables are collinear. You will have a chance to further explore this data set as part of an exercise associated with this Section.

performance::check_model(model3, check = "vif")

Figure 6.3: Variance inflation factors visualized using the check_model function in the performance package (Lüdecke et al. 2021).

6.5 Understanding confounding using DAGs: A simulation example

Let’s consider a system of variables, represented using a directed acylical graph (DAG)² in which arrows represent causal effects (Figure 6.4).

Figure 6.4: Directed acyclical graph (DAG) with magnitudes of coefficients depicting causal relationships between X1, X2, and Y.

The arrows between $X_1$ and $y$ and $X_2$ and $Y$ indicate that if we manipulate either $X_1$ or $X_2$, these changes will have a direct effect on $Y$. The link between $X_1$ and $X_2$ also highlights that when we manipulate $X_1$ we will also change $X_2$. Thus, $X_1$ also has an indirect effect on $Y$ that is mediated by $X_2$ through the path $X_1\to X_2\to Y$.

Let’s simulate data consistent with the DAG in Figure 6.4, assuming:

• $X_{1,i}\sim U(0,10)$, where $U$ is a uniform distribution, meaning that $X_{1,i}$ can take on any value between 0 and 10 with equal probability.
• $X_{2,i}=\tau X_{1,i}+{\gamma }_i$ with ${\gamma }_i\sim N(0,4)$
• $Y_i=10+3X_{1,i}+3X_{2,i}+{ϵ}_i$ with ${ϵ}_i\sim N(0,2)$

Let’s simulate data sets for values of $\tau$ ranging from 0 to 9 by 3, and for each data set, fit the following 2 models:

• lm(Y ~ X1)
• lm(Y ~ X1 + X2)

Figure 6.5: Results of fitting models with and without $X_2$ to data simulated using the DAG from Figure 6.4. The true ${\beta }_1=3$.

Looking at Figure 6.5, we see that:

• The coefficient for $X_1$ is biased whenever $X_2$ is not included in the model (unless $\tau =0$, in which case $X_1$ and $X_2$ are independent; left panel of Figure 6.5)
• The magnitude of the bias increases with the correlation between $X_1$ and $X_2$ (i.e., with $\tau$)
• The coefficient for $X_1$ is unbiased when $X_2$ is included, but estimates of ${\hat{\beta }}_1$ become more variable as the correlation between $X_1$ and $X_2$ increases (right panel of Figure 6.5).

To understand these results, note that:

$$\begin{array}{r}{Y}_i=10+3X_{1,i}+3X_{2,i}+{ϵ}_i\text{ and }{X}_{2,i}=\tau X_{1,i}+{\gamma }_i\\ \Rightarrow Y_i=10+3X_{1,i}+3(\tau X_{1,i}+{\gamma }_i)+{ϵ}_i\\ \Rightarrow Y_i=10+(3+3\tau )X_{1,i}+(3{\gamma }_i+{ϵ}_i)\end{array}$$

Thus, when we leave $X_2$ out of the model, $X_1$ will capture both the direct effect of $X_1$ on $Y$ as well as the indirect effect of $X_1$ on $Y$ that occurs through the path $X_1\to X_2\to Y$. The relative strength of these two effects are dictated by the coefficients that capture the magnitude of the causal effects along each path. The magnitude for the path $X_1\to Y$ is 3 since this is a direct path. For the $X_1\to X_2\to Y$ path, we have to multiply the coefficients along the path ( $X_1\to X_2$ and $X_2\to Y$), giving $3\tau$. Thus, the total effect (direct and indirect effect) of manipulating $X_1$ is given by $3+3\tau$ in this example. We will further consider the implications of various causal diagrams in Chapter 7.

6.6 Strategies for addressing multicollinearity

As we saw in the last section, omitting important predictors can lead to biased regression parameter estimators.³ Yet, it is common for researchers to drop one or more variables when they are highly correlated. For example, when faced with 2 highly correlated predictors, users may compare univariate regression models and select the variable that has the strongest association with the response variable. Alternatively, if one applies a stepwise model-selection routine (Section 8.4), it is likely that one of the highly correlated predictors will be dropped during that process because competing predictors will often look “underwhelming” when they are both included. What should we do instead?

As we will discuss in Chapter 8, it is paramount to consider how a model will be used when developing strategies for handling messy data situations, including multicollinearity. If our goal is to generate accurate predictions, then we may not care about the effect of any one variable in isolation (i.e., we may not be interested in how $Y$ changes as we change $X_1$ while holding all other variables constant – we just want to be able to predict $Y$ from the suite of available variables). In this case, we may choose to include all variables in our model even if their individual standard errors are inflated due to multicollinearity. We may want to consider regularization or penalization methods (see Section 8.7), such as ridge regression and the LASSO (Hoerl and Kennard 1970; Tibshirani 1996; Dormann et al. 2013). These methods trade off a small amount of bias to improve precision associated with regression parameter estimators. Yet, it is also important to recognize the challenges association with identifying the unique contributions of collinear variables; often, it will be best to simply consider their combined effects when performing inference. For example, if we have two variables that are highly collinear, we can use the methods from Section 3.12 to test whether both of their coefficients are 0 versus the alternative hypothesis that at least one of the two coefficients is non-zero.

Alternatively, one may create new predictor variables that are orthogonal (i.e., not correlated), but these methods present their own challenges when it comes to interpretation. In the next sections, we will consider two such approaches suggested by Graham (2003):

• Residual and sequential regression
• Principal components regression

Graham (2003) also includes a short overview of structural equation models, which have a rich history, particularly in the social sciences and deserve their own treatment (by someone more well versed in their use than me!). One option would be Jarrett Byrnes’s course. For a nice introduction, I also suggest reading Grace (2008).

6.7 Applied example: Modeling the effect of correlated environmental factors on the distribution of subtidal kelp

We begin by considering the data from Graham (2003), which are contained in the Data4Ecologists package.

library(Data4Ecologists)
data(Kelp)

The data consist of 38 observations with the following predictors used to model the shallow (upper) distributional limit of the subtidal kelp, Macrocystis pyrifera.

• OD = wave orbital displacement (in meters)
• BD = wave breaking depth (in meters)
• LTD = average tidal height (in meters)
• W = wind velocity (in meters/s).

The distributional limit is contained in a variable named Response. We begin by calculating variance inflation factors for each of the predictor variables:

  library(car)
  vif(lm(Response~OD+BD+LTD+W, data=Kelp))

      OD       BD      LTD        W
2.574934 2.355055 1.175270 2.094319

Next, we use a pairwise scatterplot to explore the relationship among these predictors (Figure 6.6) using the ggpairs function in the GGally package (Schloerke et al. 2023). Importantly, we do not include the response variable in this plot because we hope to avoid having pairwise correlations between predictor and response variables influence our decisions regarding which predictors to include in our model. Although it is not uncommon to see this type of information used to eliminate some predictor variables from consideration, doing so increases the risk of overfitting one’s data, leading to a model that fits the current data well but fails to predict new data in the future (see Fieberg and Johnson 2015, and Chapter 8).

  library(GGally)
  ggpairs(Kelp[,c("OD", "BD", "LTD", "W")],
          lower = list(continuous = "smooth"))

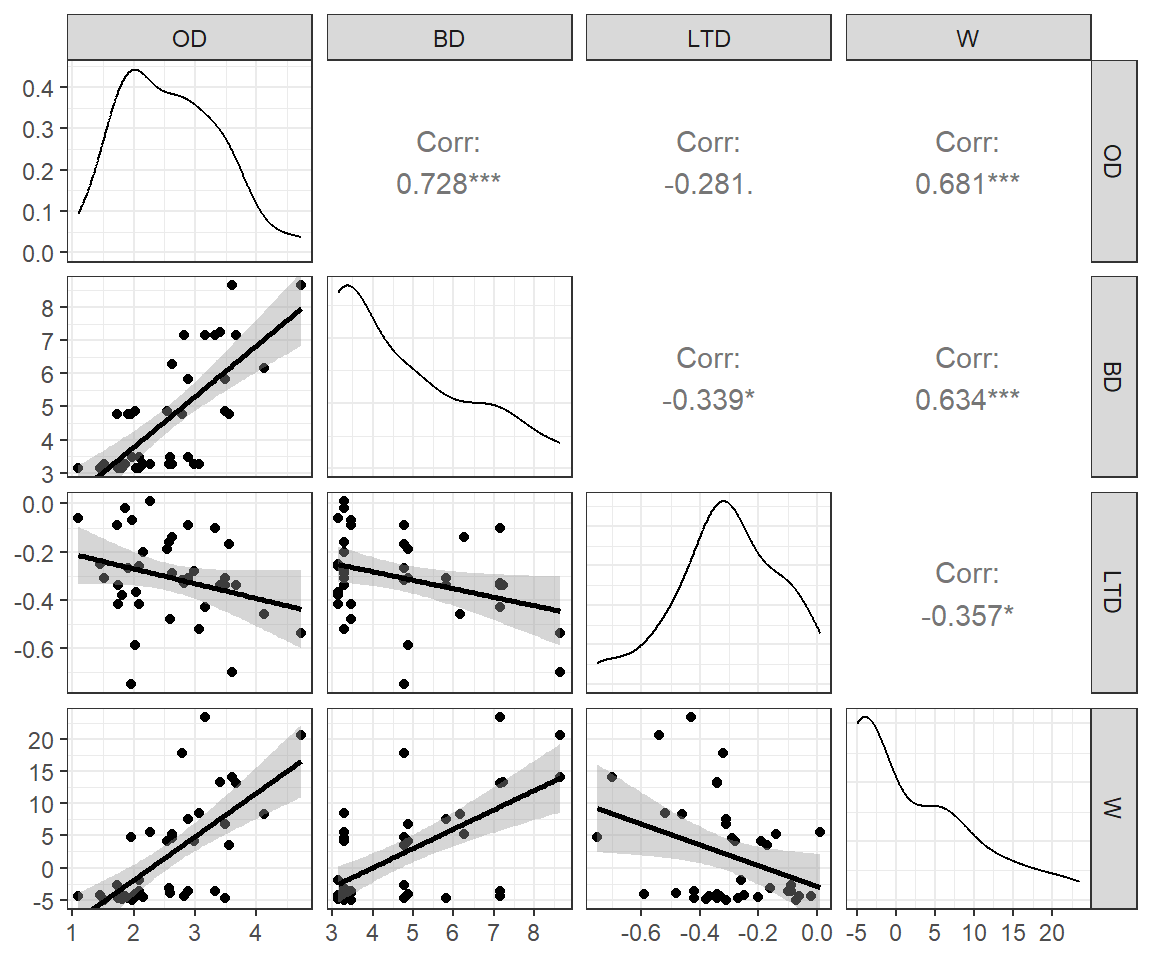

Figure 6.6: Pairwise scatterplot of predictor variables in the Kelp data set (Graham 2003).

Although all of the variance inflation factors are $<$ 5, the correlation between OD and BD is > 0.7 and the correlation between W and OD and W and BD are both > 0.6 (Figure 6.6).

6.8 Residual and sequential regression

Graham (2003) initially considers an approach he refers to as residual and sequential regression, in which variables are prioritized in terms of their order of entry into the model, with higher-priority variables allowed to account for unique as well as shared contributions to explaining the variability of the response variable, $Y$. Although I have not seen this approach applied elsewhere, it is instructive to consider how this approach partitions the variance of $Y$ across a suite of correlated predictors.

Consider a situation in which you are interested in building a model that includes three correlated predictor variables. To apply this approach, we begin by ordering the variables based on their a priori importance, say $X_1,X_2,$ and then $X_3$.⁴ We then construct a multivariable regression model containing the following predictors:

• $X_1$

• ${\tilde{X}}_2$ = the residuals of lm($X_2\sim X_1$)

• ${\tilde{X}}_3$ = the residuals of lm($X_3\sim X_1+X_2$)

$$\begin{array}{}\text{(6.2)}& Y_i={\beta }_0+{\beta }_1{X}_{1i}+{\beta }_2{\tilde{X}}_{2i}+{\beta }_3{\tilde{X}}_{3i}+{ϵ}_i\end{array}$$

In this case, ${\beta }_1$ will capture unique contributions of $X_1$ to the variance of $Y$ as well as its shared contributions with $X_2$ and $X_3$, ${\beta }_2$ will capture contributions of $X_2$ to the variance of $Y$ that are unique to $X_2$ or shared only with $X_3$ (the coefficient for $X_1$ is already accounting for any shared contributions of $X_2$ with $X_1$), and ${\beta }_3$ will capture the contributions of $X_3$ to the variance of $Y$ that are not shared with $X_1$ or $X_2$ and thus unique only to $X_3$.

For the Kelp data set, Graham (2003) decided on the following order of greatest to least importance, wave orbital displacement (OD), wind velocity (W), average tidal height (LTD), and then wave breaking depth (BD). He then created the following predictors:

  Kelp$W.g.OD<-lm(W~OD, data=Kelp)$resid
  Kelp$LTD.g.W.OD<-lm(LTD~W+OD, data=Kelp)$resid
  Kelp$BD.g.W.OD.LTD<-lm(BD~W+OD+LTD, data=Kelp)$resid

• W.g.OD = to capture the effect of W that is not shared with OD
• LTD.g.W.OD = to capture the effect of LTD that is not shared with OD or W
• BD.g.W.OD.LTD = to capture the effect of BD not shared with OD, W, or LTD

We can then fit a model that includes OD and all of these derived predictors:

  seq.lm<-lm(Response~OD+W.g.OD+LTD.g.W.OD+BD.g.W.OD.LTD, data=Kelp)
  summary(seq.lm)

Call:
lm(formula = Response ~ OD + W.g.OD + LTD.g.W.OD + BD.g.W.OD.LTD,
    data = Kelp)

Residuals:
      Min        1Q    Median        3Q       Max
-0.284911 -0.098861 -0.002388  0.099031  0.301931

Coefficients:
               Estimate Std. Error t value Pr(>|t|)
(Intercept)    2.747588   0.078192  35.139  < 2e-16 ***
OD             0.194243   0.028877   6.726 1.16e-07 ***
W.g.OD         0.008082   0.003953   2.045   0.0489 *
LTD.g.W.OD    -0.055333   0.141350  -0.391   0.6980
BD.g.W.OD.LTD -0.004295   0.021137  -0.203   0.8402
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.1431 on 33 degrees of freedom
Multiple R-squared:  0.6006,    Adjusted R-squared:  0.5522
F-statistic: 12.41 on 4 and 33 DF,  p-value: 2.893e-06

To interpret the coefficients, we need to keep in mind how the predictors were constructed. For example, we would interpret the coefficient for OD as capturing unique contributions of OD as well as its shared contributions with W, LTD and BD. We would interpret the coefficient for W.g.OD as capturing the unique contributions of W as well as its shared contributions with LTD and BD that are not already accounted for by OD. The non-significant coefficients for LTD.g.W.OD and BD.g.W.OD.LTD could be interpreted as suggesting that the variables LTD and BD offer little to no new information about Response that is not already accounted for by OD and W.

Because of the way we created the variables, the variables are orthogonal - i.e., they are all uncorrelated. Thus, eliminating the lesser priority variables will not change the coefficients for the other variables.

  seq.lm2<-lm(Response~OD+W.g.OD, data=Kelp)
  summary(seq.lm2)$coef

               Estimate  Std. Error   t value     Pr(>|t|)
(Intercept) 2.747587774 0.076148241 36.082091 2.796476e-29
OD          0.194243475 0.028122800  6.906975 5.038589e-08
W.g.OD      0.008082141 0.003849614  2.099468 4.305538e-02

It is important to recognize, however, that we are still unable to identify the unique contributions of the different variables, and that the coefficients we estimate depend on how we prioritize the predictors.

6.9 Principal components regression

Another way to create orthogonal predictors is to perform a principal component analysis (PCA) on the set of predictor variables under consideration. A PCA will create new orthogonal predictors from linear combinations⁵ of the original correlated variables:

$pc{a}_1={\lambda }_{1,1}{X}_1+{\lambda }_{1,2}{X}_2+\dots {\lambda }_{1,p}{X}_p$

$pc{a}_2={\lambda }_{2,1}{X}_1+{\lambda }_{2,2}{X}_2+\dots {\lambda }_{2,p}{X}_p$

$\cdots$

$pc{a}_p={\lambda }_{p,1}{X}_1+{\lambda }_{p,2}{X}_2+\dots {\lambda }_{p,p}{X}_p$,

where $p$ is the number of original correlated predictors and also the number of new orthogonal predictors that are created. These new predictors, $pc{a}_i$, are often referred to as principal component scores. The $\lambda$’s, often referred to as loadings, are unique to each $pc{a}_i$ and weight the contribution of each of the original variables when forming the new orthogonal variables.

Whereas the sequential regression approach from the last section created new orthogonal predictors through a prioritization and residual regression algorithm, a PCA creates new predictors such that $pc{a}_1$ accounts for the greatest axis of variation in $(X_1,X_2,...,X_p)$, $pc{a}_2$ accounts for greatest axis of remaining variation in $(X_1,X_2,...,X_p)$, not already accounted for by $pc{a}_1$, etc⁶. Because of the way these variables are created, we might expect most of the information in the suite of variables will be contained in the first few principal components. PCAs are relatively easy to visualize in the 2-dimensional case (i.e., $p=2$; see Figure 6.7)); the first principal component will fall upon the axis with the greatest spread, and the second principal component will fall perpendicular (orthogonal) to the first. This logic extends to higher dimensions but visualization is no longer so easy. When $p>2$, it is common to plot just the first two principal components along with vectors that highlight the contributions of the original variables to these principal components (i.e., their loadings on the first two principal components); this type of plot is often referred to as a bi-plot (Figure 6.8).

Figure 6.7: Principal component analysis (PCA) of a set of bivariate Normal random variables showing the axes associated with the first two principal components. From https://commons.wikimedia.org/wiki/File:GaussianScatterPCA.svg.

There are lots of functions in R that can be used to implement a PCA. Here, we use the princomp function in R (R Core Team 2021). PCAs formed using the covariance matrix of the predictor data will depend heavily on how variables are scaled (remember, we are finding linear combinations of the original predictor data that explain the majority of the variance in our predictors; if we do not scale our predictors first, or use the correlation matrix, then our principal components will be dominated by the variables that are largest in magnitude as these will have the largest variance). Thus, to avoid these issues, we add the argument cor=TRUE to indicate that we want to form PCAs using the correlation matrix (which effectively scales all predictors to have mean 0 and standard deviation of 1) rather than use the covariance matrix of our original predictor variables.

   pcas<-princomp(~OD+BD+LTD+W, data=Kelp, cor=TRUE, scores=TRUE)
   summary(pcas)

Importance of components:
                          Comp.1    Comp.2     Comp.3     Comp.4
Standard deviation     1.6016768 0.8975073 0.60895215 0.50822166
Proportion of Variance 0.6413421 0.2013799 0.09270568 0.06457231
Cumulative Proportion  0.6413421 0.8427220 0.93542769 1.00000000

We see that the first principal component accounts for 64% of the variation in the predictors, the second principal component accounts for 20% of the variation, and the other two together account for approximately 15% of the variation. We can also look at the loadings, which give the $\lambda$’s used to create our 4 principal components. The blank values are not 0 but just small (< 0.001), and the signs here are arbitrary (i.e., we could multiply all loadings in a column by -1 and not change the proportion of variance explained by the $pca$).

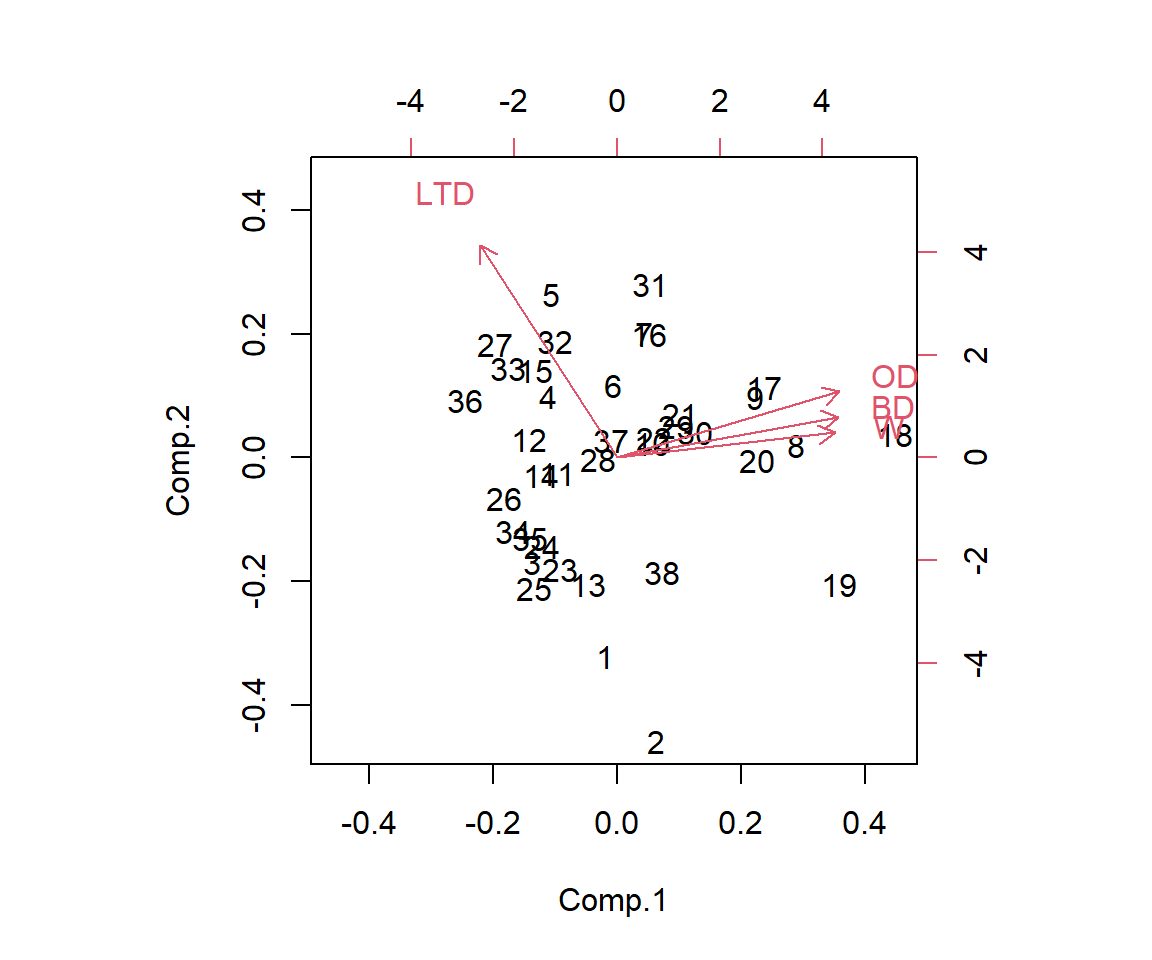

   pcas$loadings

Loadings:
    Comp.1 Comp.2 Comp.3 Comp.4
OD   0.548  0.290  0.159  0.768
BD   0.545  0.179  0.581 -0.577
LTD -0.338  0.934
W    0.536  0.110 -0.795 -0.259

               Comp.1 Comp.2 Comp.3 Comp.4
SS loadings      1.00   1.00   1.00   1.00
Proportion Var   0.25   0.25   0.25   0.25
Cumulative Var   0.25   0.50   0.75   1.00

The new PCA variables are contained in pca$scores. We could also calculate these by “hand” if we first scaled and centered our original predictor data and then multiplied those values by the loadings as demonstrated below:

   #scores by "hand" compared to scores returned by princomp
   head(scale(as.matrix(Kelp[,2:5]))%*%pcas$loadings, n = 3)

         Comp.1    Comp.2      Comp.3      Comp.4
[1,] -0.1912783 -1.752736  0.66278941 -0.24694830
[2,]  0.6223409 -2.502387 -0.18091063 -0.46900655
[3,] -1.3326878 -0.919048  0.03361542  0.05590063

   head(pcas$scores, n = 3)

      Comp.1     Comp.2      Comp.3      Comp.4
1 -0.1938459 -1.7762635  0.67168631 -0.25026319
2  0.6306949 -2.5359779 -0.18333907 -0.47530223
3 -1.3505770 -0.9313847  0.03406665  0.05665101

As mentioned previously, it is common to plot the first two sets principal component scores along with the loadings, e.g., using the biplot function in R (Figure 6.8). From this plot, we can see that the first principal component is largely determined by OD, BD and W, whereas the second principal component is mostly determined by LTD. We can also arrive at this same conclusion by inspecting the loadings on each principal component. For example, if we inspect the loading for the 2nd principal component, we see that the largest loading is associated with LTD (0.934) with all other loadings being less than 0.3. Furthermore, we can see that the 3rd predictor contributes little to the 3rd and 4th principal components.

  biplot(pcas)

Figure 6.8: Bi-plot showing the first two principal components using the Kelp data set (Graham 2003), along with the loadings of the original variables.

It is important to recognize that $pc{a}_1$ explains the greatest variation in $(X_1,X_2,...,X_p)$ and not necessarily the greatest variation in $Y$ (the same goes for the other $pca$s).⁷ So although the last two principal components account for little variation in the original predictors, they may still account for significant variation in $Y$ (Jolliffe 1982). Therefore, it is generally a good idea to include all principal components in a regression model (Graham 2003).

  Kelp<-cbind(Kelp, pcas$scores)
  lm.pca<-lm(Response~ Comp.1 + Comp.2 + Comp.3 + Comp.4, data=Kelp)
  summary(lm.pca)

Call:
lm(formula = Response ~ Comp.1 + Comp.2 + Comp.3 + Comp.4, data = Kelp)

Residuals:
      Min        1Q    Median        3Q       Max
-0.284911 -0.098861 -0.002388  0.099031  0.301931

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  3.24984    0.02321 140.035  < 2e-16 ***
Comp.1       0.09677    0.01449   6.678 1.33e-07 ***
Comp.2       0.02931    0.02586   1.134    0.265
Comp.3      -0.03564    0.03811  -0.935    0.356
Comp.4       0.07722    0.04566   1.691    0.100
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.1431 on 33 degrees of freedom
Multiple R-squared:  0.6006,    Adjusted R-squared:  0.5522
F-statistic: 12.41 on 4 and 33 DF,  p-value: 2.893e-06

Since the $pc{a}_i$’s are orthogonal, the coefficients will not change if we drop one or more of them (as demonstrated below):

  lm.pca2<-lm(Response ~ Comp.1, data = Kelp)
  summary(lm.pca2)

Call:
lm(formula = Response ~ Comp.1, data = Kelp)

Residuals:
     Min       1Q   Median       3Q      Max
-0.28269 -0.09537  0.00437  0.06927  0.35765

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  3.24984    0.02385 136.265  < 2e-16 ***
Comp.1       0.09677    0.01489   6.499 1.51e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.147 on 36 degrees of freedom
Multiple R-squared:  0.5398,    Adjusted R-squared:  0.527
F-statistic: 42.23 on 1 and 36 DF,  p-value: 1.507e-07

Yet, if we used the coefficients and loadings associated with the remaining $pca$’s (here, just $pc{a}_1$) to estimate the effects of the original variables, we would find that they differ from those estimated using lm(Response ~ OD + W + LTD + BD). In the end, as a data-reduction technique (Harrell Jr 2015), we might choose to capture the combined effect of OD, W, LTD and BD using a single principal component (and 1 model degree of freedom). A downside of this approach is that this principal component can be difficult to interpret as it is a function of all of the original predictor variables. In addition, it may be useful to consider methods, such as partial least squares, that consider covariation between predictor and response variables when constructing orthogonal predictors (Scott and Crone 2021).

6.10 Other methods

There are several other multivariate regression techniques that one could consider when trying to eliminate collinear variables. In particular, one might consider combining similar variables (e.g., “weather variables”) using a PCA or variable clustering or scoring technique that creates an index out of multiple correlated variables (e.g., weather severity formed by adding a 1 whenever temperatures fall below, or snow depth falls above, pre-defined thresholds, DelGiudice et al. 2002; Dormann et al. 2013; Harrell Jr 2015). Scoring techniques are not that different from a multiple regression model, except rather than attempt to estimate optimal weights associated with each predictor (i.e., separate regression coefficients), variables are combined by assigning a +1, 0, -1 depending on whether the value of each predictor is expected to be indicative of larger or smaller values of the response variable, and then a single coefficient associated with the aggregated index is estimated.⁸ There are also several statistical methods (e.g., factor analysis, partial least squares, structural equation models, etc) that use latent variables to represent various constructs (e.g., personality, size, etc) that can be informed by or are the products of multiple correlated variables. We will not discuss these methods here, but note that they are popular in the social sciences. Some of these methods are touched on in Dormann et al. (2013).

6.11 References

Allison, Truett, and Domenic V Cicchetti. 1976. “Sleep in Mammals: Ecological and Constitutional Correlates.” Science 194 (4266): 732–34.

Çetinkaya-Rundel, Mine, David Diez, Andrew Bray, Albert Y. Kim, Ben Baumer, Chester Ismay, Nick Paterno, and Christopher Barr. 2021. Openintro: Data Sets and Supplemental Functions from ’OpenIntro’ Textbooks and Labs. https://CRAN.R-project.org/package=openintro.

Cohen, Jacob. 1992. “Things i Have Learned (so Far).” In Annual Convention of the American Psychological Association, 98th, Aug, 1990, Boston, MA, US; Presented at the Aforementioned Conference. American Psychological Association.

DelGiudice, Glenn D, Michael R Riggs, Pierre Joly, and Wei Pan. 2002. “Winter Severity, Survival, and Cause-Specific Mortality of Female White-Tailed Deer in North-Central Minnesota.” The Journal of Wildlife Management, 698–717.

Dormann, Carsten F, Jane Elith, Sven Bacher, Carsten Buchmann, Gudrun Carl, Gabriel Carré, Jaime R García Marquéz, et al. 2013. “Collinearity: A Review of Methods to Deal with It and a Simulation Study Evaluating Their Performance.” Ecography 36 (1): 27–46.

Fieberg, John, and Douglas H Johnson. 2015. “MMI: Multimodel Inference or Models with Management Implications?” The Journal of Wildlife Management 79 (5): 708–18.

Fox, John, and Sanford Weisberg. 2019. An R Companion to Applied Regression. Third. Thousand Oaks CA: Sage. https://socialsciences.mcmaster.ca/jfox/Books/Companion/.

Grace, James B. 2008. “Structural Equation Modeling for Observational Studies.” The Journal of Wildlife Management 72 (1): 14–22.

Graham, Michael H. 2003. “Confronting Multicollinearity in Ecological Multiple Regression.” Ecology 84 (11): 2809–15.

Harrell Jr, Frank E. 2015. Regression Modeling Strategies: With Applications to Linear Models, Logistic and Ordinal Regression, and Survival Analysis. Springer.

Hoerl, Arthur E, and Robert W Kennard. 1970. “Ridge Regression: Biased Estimation for Nonorthogonal Problems.” Technometrics 12 (1): 55–67.

Jolliffe, Ian T. 1982. “A Note on the Use of Principal Components in Regression.” Journal of the Royal Statistical Society: Series C (Applied Statistics) 31 (3): 300–303.

Kutner, Michael H., Christopher J. Nachtsheim, and John Neter. 2004. Applied Linear Regression Models. McGraw-Hill.

Kutner, Michael H, Christopher J Nachtsheim, John Neter, William Li, et al. 2005. Applied Linear Statistical Models. Vol. 5. McGraw-Hill Irwin Boston.

Lüdecke, Daniel, Mattan S. Ben-Shachar, Indrajeet Patil, Philip Waggoner, and Dominique Makowski. 2021. “performance: An R Package for Assessment, Comparison and Testing of Statistical Models.” Journal of Open Source Software 6 (60): 3139. https://doi.org/10.21105/joss.03139.

Morrissey, Michael B, and Graeme D Ruxton. 2018. “Multiple Regression Is Not Multiple Regressions: The Meaning of Multiple Regression and the Non-Problem of Collinearity.” Philosophy, Theory, and Practice in Biology 10 (3).

R Core Team. 2021. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

Savage, Van M, and Geoffrey B West. 2007. “A Quantitative, Theoretical Framework for Understanding Mammalian Sleep.” Proceedings of the National Academy of Sciences 104 (3): 1051–56.

Schloerke, Barret, Di Cook, Joseph Larmarange, Francois Briatte, Moritz Marbach, Edwin Thoen, Amos Elberg, and Jason Crowley. 2023. GGally: Extension to ’Ggplot2’. https://CRAN.R-project.org/package=GGally.

Scott, Eric R, and Elizabeth E Crone. 2021. “Using the Right Tool for the Job: The Difference Between Unsupervised and Supervised Analyses of Multivariate Ecological Data.” Oecologia 196 (1): 13–25.

Tibshirani, Robert. 1996. “Regression Shrinkage and Selection via the LASSO.” Journal of the Royal Statistical Society: Series B (Methodological) 58 (1): 267–88.

Valle, Denis, Jeffrey Mintz, and Ismael Verrastro Brack. 2024. “Estimation and Interpretation Problems and Solutions When Using Proportion Covariates in Linear Regression Models.” Ecology 105 (4): e4256.

Zuur, Alain, Elena N Ieno, and Chris S Elphick. 2010. “A Protocol for Data Exploration to Avoid Common Statistical Problems.” Methods in Ecology and Evolution 1 (1): 3–14.

---

1. Sometimes researchers will state that predictors were log-transformed to make them Normally distributed. Linear regression models do NOT assume that predictors are Normally distributed, so this reasoning is faulty. However, it is sometimes beneficial to consider log-transformations for predictor variables that have skewed distributions as a way to reduce the influence of individual outlying observations.

2. We will talk more about DAGs in Chapter 7, but for now, note that a DAG displays causal connections among a set of variables

3. It may seem strange to see “parameter estimator” here rather than “parameter estimates”. However, note that in statistics, bias is defined in terms of a difference between a fixed parameter and the average estimate across repeated samples (i.e., the mean of a sampling distribution). Thus, bias is associated with the method of generating estimates (i.e., the estimator), not the estimates themselves.

4. Graham (2003) suggests this ordering can be based on one’s instincts, intuition, or prior or current data, but how to use this information when deciding upon an order is not discussed in detail.

5. As a reminder, a linear combination is a weighted sum of the predictors.

6. For those readers that may have had a course in linear algebra, we can decompose $\mathrm{\Sigma }$, the correlation matrix of $(X_1,X_2,...,X_p)$ using $\mathrm{\Sigma }=V\mathrm{\Lambda }{V}^T$ where $V$ is a $[n\times p]$ matrix of eigenvectors, equivalent to the principal components, and $\mathrm{\Lambda }$ is a diagonal matrix of eigenvalues.

7. There are a multitude of multivariate regression methods, such as partial least squares, that focus instead on creating orthogonal variables that explain covariation between explanatory and response variables; see e.g., Scott and Crone (2021).

8. Jacob Cohen, a famous statistician, argued that we might be better off using these indices directly for inference rather than regression models when faced with a small number of observations and many correlated predictors; see Cohen (1992)
